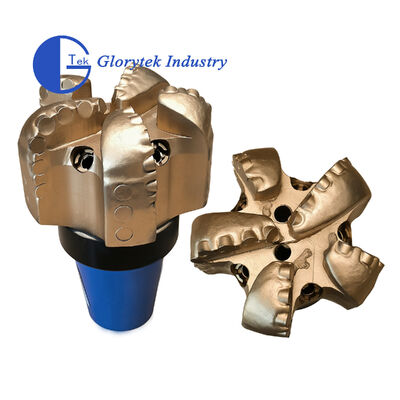

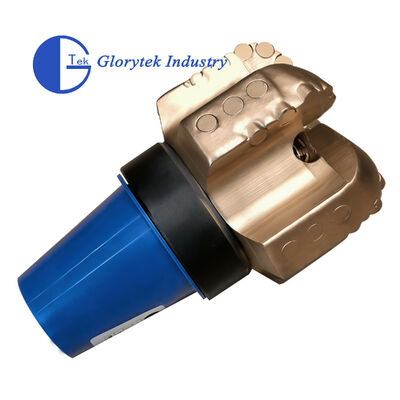

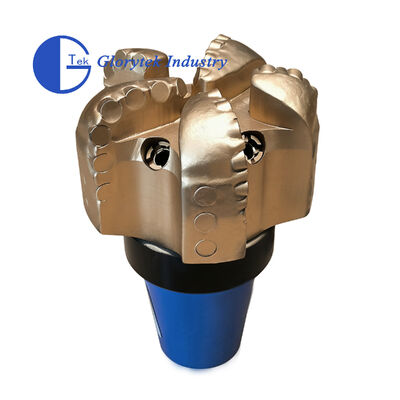

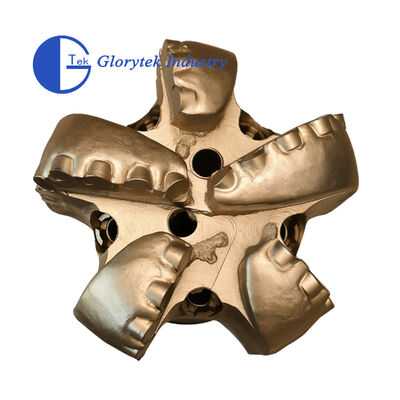

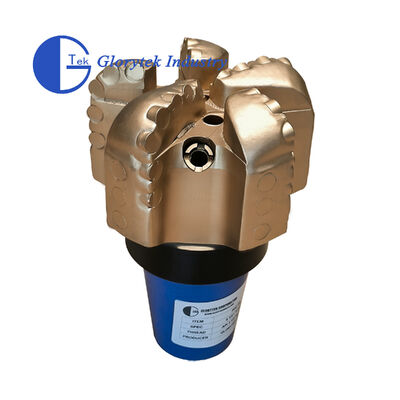

Multi Purpose 6 1/2 Inch PDC Drill Bit 5 Blade for Mining and Construction

1 sztuka
MOQ
USD2300-2800 per piece
Cena £
Multi Purpose 6 1/2 Inch PDC Drill Bit 5 Blade for Mining and Construction
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Dostosowane:: Dostosowane
Korzyść: Wysoka wydajność, odporność na zużycie
Podłącz wątek: API lub Reg lub dostosowane
Tworzywo:: stal i matryca
Dostępne rozmiary: 2 7/8 - 26 cali
Obowiązujące branże: studnia wodna, szyb naftowy i dysk twardy
Rozmiar ostrza: 6-12 cali
Formacje: Formacje miękkie i średnie
Dostępne ostrza Nie: w oparciu o Twoją średnicę
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Glorytek
Orzecznictwo: CE
Numer modelu: 6 i pół metra.
Zapłata
Szczegóły pakowania: Pakiet z zdatki z zdobytą
Czas dostawy: 20 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 4000 sztuk miesięcznie
opis produktu
PDC Drill Bit
Product Description

PDC drill bit are drilling tools used in the oil and gas industry to penetrate rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters. PDC bits are commonly used in directional drilling applications due to their stability and directional control capabilities.

Multi Purpose 6 1/2 Inch PDC Drill Bit 5 Blade for Mining and Construction 0

Technical Parameter
Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432

M332
M323 M432 M332 IADC Code M323
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13
MM
Φ16
MM
Φ13
MM
Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16×58;Φ13×81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque(KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed(rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit(KN) 8-50 20-100 20-100 30-140 Rotary Speed(Rpm) 60-260
Max.WOB(KN) 90 130 130 180 Weight On Bit(KN) 30-200
Flow Rate(lps) 10-30 22-35 22-35 38-70 Max.WOB (KN) 240





Flow Rate(lps) 45-80
Company Profile

Glorytek Industry ( Beijing) Co., Ltd located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Multi Purpose 6 1/2 Inch PDC Drill Bit 5 Blade for Mining and Construction 1

Multi Purpose 6 1/2 Inch PDC Drill Bit 5 Blade for Mining and Construction 2

After-sale Warranty
  1. Free change once the problem caused by the quality issue.
  2. Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
